NTE103 - Germanium Complementary Transistors

This page provides the datasheet information for the NTE103, a member of the NTE102 Germanium Complementary Transistors family.

Datasheet Summary

Description

The NTE102 (PNP) and NTE103 (NPN) are Germanium complementary transistors designed for medium

speed saturated switching applications.

Features

  • D Low Collector.
  • Emitter Saturation Voltage: VCE(sat) = 200mV Max @ IC = 24mA D High Emitter.
  • Base Breakdown Voltage: V(BR)EBO = 12V Min @ IE = 20µA Absolute Maximum Ratings: Collector.
  • Base Voltage, VCBO.
  • 25V Collector.
  • Emitter Voltage, VCES.
  • . . . . 24V Emitter.
  • Base Voltag.

📥 Download Datasheet

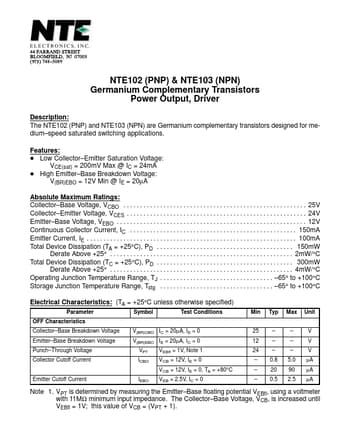

Datasheet preview – NTE103

Datasheet Details

Part number NTE103
Manufacturer NTE
File Size 24.54 KB
Description Germanium Complementary Transistors
Datasheet download datasheet NTE103 Datasheet
Additional preview pages of the NTE103 datasheet.
