NTE15039 Datasheet - NTE

Integrated Circuit VHS/VCR Chroma Signal Proessor

NTE15039 Features

* D Designed for NTSC/PAL/MESECAM Systems D Adjustment

* Free Chroma Section (Except REC Chroma Level) D Few External Components Required D LPF Usable for REC/PB D Multifunctional: 2fSC Generator for CCD Drive Function to Select APC Loop Input Signal Passed/Not Passed Through Comb Filter 3rd Lo

NTE15039 General Description

The NTE15039 is a multifunctional IC in a 24 *Lead DIP type package that contains VHS VCT chroma signal processing circuitry. Since the package is small and a minimum number of external components are required, the NTE15039 occupies much less space on the PC board thus facilitating VCR desig.

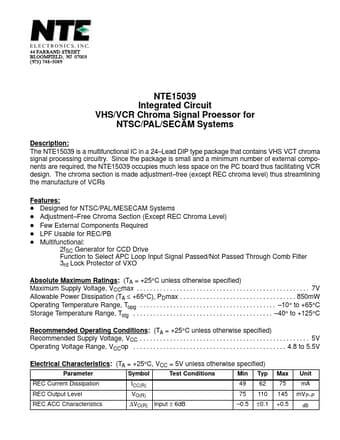

NTE15039 Datasheet (23.28 KB)

NTE15039 Datasheet Preview — Preview of NTE15039 PDF

Datasheet Details

Part number:

NTE15039

Manufacturer:

NTE

File Size:

23.28 KB

Description:

Integrated circuit vhs/vcr chroma signal proessor.
