NTE1673

Integrated Circuit Video Chroma Processor

NTE1673 General Description

The NTE1673 is a multifunctional integrated circuit in a 28

*Lead DIP type package where an APC chroma circuit is formed so compactly as to use only 16 pins with the characteristic requirements remaining fulfilled and the rest of pins are used for video circuits. It contains a double doeffer.

NTE1673 Datasheet (24.95 KB)

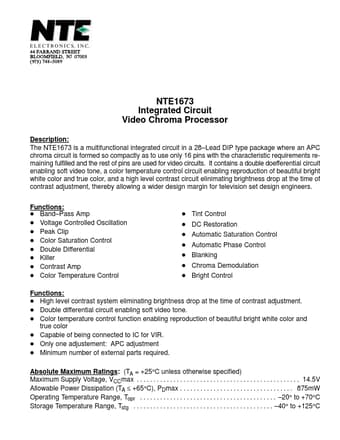

Preview of NTE1673 PDF

Datasheet Details

Part number:

NTE1673

Manufacturer:

NTE

File Size:

24.95 KB

Description:

Integrated circuit video chroma processor.
