NTE2014 Datasheet - NTE

NTE2014 Integrated Circuit 7-Channel Darlington Array/Driver

The NTE2011 through NTE2015 are high *voltage, high *current Darlington arrays in a 16 *Lead DIP type package and are comprised of seven silicon NPN Darlington pairs on a common monolithic substrate. All units have open *collector outputs and integral diodes for inductiv.

NTE2014_NTEElectronics.pdf

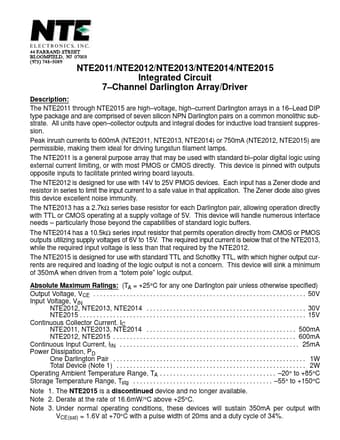

Preview of NTE2014 PDF
NTE2014 Datasheet Preview Page 2 NTE2014 Datasheet Preview Page 3

Datasheet Details

Part number:

NTE2014

Manufacturer:

NTE

File Size:

23.62 KB

Description:

Integrated circuit 7-channel darlington array/driver.
