NTE2661 - Silicon NPN Transistor Horizontal Deflection Output

Datasheet Summary

Features

  • D High Speed: tf = 0.15µs Typ D High Breakdown Voltage: VCBO = 1700V D Low Saturation Voltage: VCE(sat) = 3V Max Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector.
  • to.
  • Base Voltage, VCBO.
  • 1700V Collector.
  • to.
  • Emitter Voltage, VCEO.
  • 600V Emitter.
  • to.
  • Bas.

📥 Download Datasheet

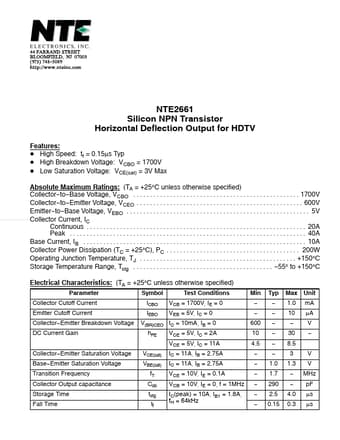

Datasheet preview – NTE2661

Datasheet Details

Part number NTE2661
Manufacturer NTE Electronics
File Size 97.55 KB
Description Silicon NPN Transistor Horizontal Deflection Output
Datasheet download datasheet NTE2661 Datasheet
Additional preview pages of the NTE2661 datasheet.
