NTE262, NTE261 Silicon Complementary Transistors Darlington Power Amplifier

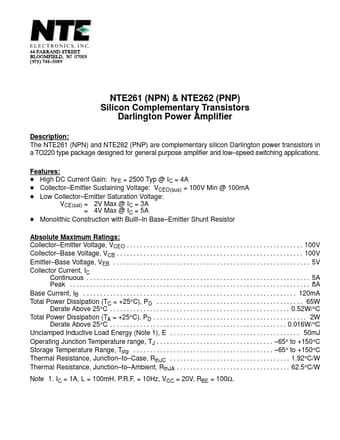

📥 Download Datasheet Datasheet Preview Page 1

Description

NTE261 (NPN) & NTE262 (PNP) Silicon Complementary Transistors Darlington Power Amplifier .
The NTE261 (NPN) and NTE262 (PNP) are complementary silicon Darlington power transistors in a TO220 type package designed for general purpose amplifi.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTE262, NTE261. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
NTE262, NTE261
Manufacturer
NTE
File Size
24.86 KB
Datasheet
NTE261_NTEElectronics.pdf
Description
Silicon Complementary Transistors Darlington Power Amplifier
Note
This datasheet PDF includes multiple part numbers: NTE262, NTE261.
Please refer to the document for exact specifications by model.

Features

* D High DC Current Gain: hFE = 2500 Typ @ IC = 4A D Collector
* Emitter Sustaining Voltage: VCEO(sus) = 100V Min @ 100mA D Low Collector
* Emitter Saturation Voltage: VCE(sat) = 2V Max @ IC = 3A = 4V Max @ IC = 5A D Monolithic Construction with Built
* In Base
* Emitter Shunt
