NTE2632 - Integrated Circuit Quad Differential Line Receiver

Datasheet Summary

Description

The NTE2632 is a quad line receiver constructed using Advanced Low Power Schottky processing in a 16 Lead DIP type package designed to meet the requirements of RS 422 and RS 423, and federal standards 1020 and 1030 for balanced and unbalanced digital data transmissio

Features

and input sensitivity of 200mV over the input voltage range of ±7V. The NTE2632 provides an enable and disable function common to all four receivers and features 3.
state outputs with 8mA sink capability. This device also incorporates a fail safe input.
output relationship which keeps the outputs high when the inputs are open. Features: D Input Voltage Range of 7V (differential or common mode) D ±0.2V Sensitivity over the Input Voltage Range D Meets all the Requirements of RS.

Datasheet Details

Part number	NTE2632
Manufacturer	NTE
File Size	25.58 KB
Description	Integrated Circuit Quad Differential Line Receiver
Datasheet	NTE2632 Datasheet
Additional preview pages of the NTE2632 datasheet.

📁 Similar Datasheet

NTE2661 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)

NTE2662 - Silicon NPN Transistor High Frequency (NTE Electronics)

NTE2665 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)

NTE2668 - Silicon NPN Transistor High Current Switching (NTE Electronics)

NTE2000 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)

NTE2001 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)

NTE2003 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)

NTE2004 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)

NTE214 - (NTE74xx) Transistor Logic (NTE Electronics)

NTE2393 - N-Channel MOSFET (INCHANGE)

Full PDF Text Transcription

Click to expand full text

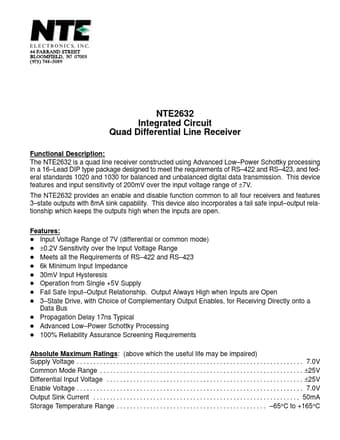

NTE2632 Integrated Circuit Quad Differential Line Receiver Functional Description: The NTE2632 is a quad line receiver constructed using Advanced Low–Power Schottky processing in a 16–Lead DIP type package designed to meet the requirements of RS–422 and RS–423, and federal standards 1020 and 1030 for balanced and unbalanced digital data transmission. This device features and input sensitivity of 200mV over the input voltage range of ±7V. The NTE2632 provides an enable and disable function common to all four receivers and features 3–state outputs with 8mA sink capability. This device also incorporates a fail safe input–output relationship which keeps the outputs high when the inputs are open. Features: D Input Voltage Range of 7V (differential or common mode) D ±0.
