NTE2665 - Silicon NPN Transistor Horizontal Deflection Output

Datasheet Summary

Features

  • D High Voltage: VCBO = 1700V D Low Saturation Voltage: VCE(sat) = 3V Max D High Speed: tf = 0.1μs Typ Absolute Maximum Ratings: (TC = +25°C unless otherwise specified) Collector-Base Voltage, VCBO.
  • . . . 1700V Collector-Emitter Voltage, VCEO.
  • . . . 800V Emitter-Base Voltage, VEBO.

📥 Download Datasheet

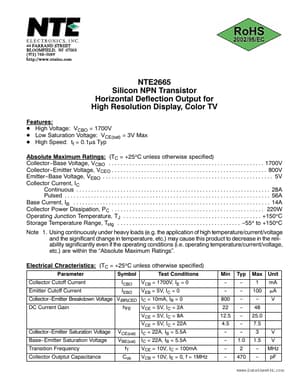

Datasheet preview – NTE2665

Datasheet Details

Part number NTE2665
Manufacturer NTE Electronics
File Size 85.99 KB
Description Silicon NPN Transistor Horizontal Deflection Output
Datasheet download datasheet NTE2665 Datasheet
