NTE2668 - Silicon NPN Transistor High Current Switching

Datasheet Summary

Features

  • D Adoption of FBET, MBIT process D Large Current Capacitance D Low Collector-To-Emitter Saturation Voltage D High Speed Switching D High Allowable Power Dissipation.

📥 Download Datasheet

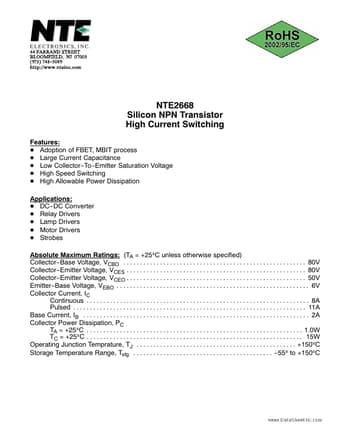

Datasheet preview – NTE2668

Datasheet Details

Part number NTE2668
Manufacturer NTE Electronics
File Size 83.05 KB
Description Silicon NPN Transistor High Current Switching
Datasheet download datasheet NTE2668 Datasheet
Additional preview pages of the NTE2668 datasheet.

📁 Similar Datasheet

  • NTE266 - Silicon NPN Transistor Darlington Power Amplifier (NTE)
  • NTE2666 - (NTE2666 / NTE2667) Silicon Complementary Transistors (NTE)
  • NTE2667 - (NTE2666 / NTE2667) Silicon Complementary Transistors (NTE)
  • NTE26 - Silicon NPN Transistor (NTE)
  • NTE261 - Silicon Complementary Transistors (NTE)
  • NTE262 - Silicon Complementary Transistors Darlington Power Amplifier (NTE)
  • NTE263 - Silicon Complementary Transistors (NTE)
  • NTE2631 - Integrated Circuit Quad Differential Line Driver (NTE)
  • NTE2632 - Integrated Circuit Quad Differential Line Receiver (NTE)
  • NTE2633 - Silicon Complementary Transistors (NTE)
Other Datasheets by NTE Electronics
  • NTE2661 - Silicon NPN Transistor Horizontal Deflection Output
  • NTE2662 - Silicon NPN Transistor High Frequency
  • NTE2665 - Silicon NPN Transistor Horizontal Deflection Output
  • NTE2000 - (NTExxxx) Linear Integrated Circuits
  • NTE2001 - (NTExxxx) Linear Integrated Circuits
  • NTE2003 - (NTExxxx) Linear Integrated Circuits
  • NTE2004 - (NTExxxx) Linear Integrated Circuits
  • NTE214 - (NTE74xx) Transistor Logic

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com NTE2668 Silicon NPN Transistor High Current Switching Features: D Adoption of FBET, MBIT process D Large Current Capacitance D Low Collector-To-Emitter Saturation Voltage D High Speed Switching D High Allowable Power Dissipation Applications: D DC-DC Converter D Relay Drivers D Lamp Drivers D Motor Drivers D Strobes Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector-Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V Collector-Emitter Voltage, VCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V Collector-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
