NTE266 - Silicon NPN Transistor Darlington Power Amplifier

NTE266 Description

NTE266 Silicon NPN Transistor Darlington Power Amplifier .

NTE266 Features

* D Forward Current Transfer Ratio: hFE = 40,000 Min D Power Dissipation: 1.33W Free

NTE266 Applications

* D Driver, IC Driver D Regulator D Touch Switch D Audio Output D Relay Substitute D Oscillator D Servo
* Amplifier D Capacitor Multiplier Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector
* to
* Emitter Voltage, VCEO

📥 Download Datasheet

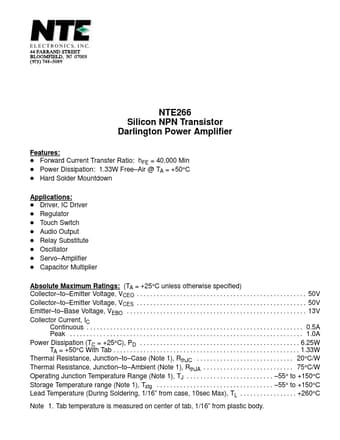

Preview of NTE266 PDF
datasheet Preview Page 2

Datasheet Details

Part number
NTE266
Manufacturer
NTE
File Size
22.86 KB
Datasheet
NTE266_NTEElectronics.pdf
Description
Silicon NPN Transistor Darlington Power Amplifier
