NTE2633 - Silicon Complementary Transistors

Datasheet Summary

Description

The NTE2633 (NPN) and NTE2634 (PNP) are silicon complementary epitaxial transistor in a TO126 type package designed for use in the buffer stage of the driver for high

resolution color graphics monitors.

Features

  • D High Breakdown Voltage D Low Output Capacitance Absolute Maximum Ratings: Collector.
  • Base Voltage, VCBO.
  • . . . . 115V Collector.
  • Emitter Voltage, VCEO.
  • . . . . 95V Collector.
  • Emitter Voltage (RBE = 100Ω), VCER.
  • 110V Emitter.

📥 Download Datasheet

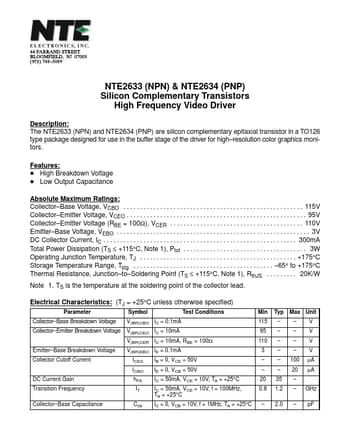

Datasheet preview – NTE2633
