NTE2636 - Silicon NPN Transistor

Datasheet Summary

Features

  • D High Breakdown Voltage: VCES = 1500V D Built.
  • In Damper Diode D Isolated TO3PFM Type Package.

📥 Download Datasheet

Datasheet preview – NTE2636

Datasheet Details

Part number NTE2636
Manufacturer NTE
File Size 23.21 KB
Description Silicon NPN Transistor
Datasheet download datasheet NTE2636 Datasheet
Additional preview pages of the NTE2636 datasheet.

📁 Similar Datasheet

  • NTE2661 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2662 - Silicon NPN Transistor High Frequency (NTE Electronics)
  • NTE2665 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2668 - Silicon NPN Transistor High Current Switching (NTE Electronics)
  • NTE2000 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2001 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2003 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2004 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE214 - (NTE74xx) Transistor Logic (NTE Electronics)
  • NTE2393 - N-Channel MOSFET (INCHANGE)
Other Datasheets by NTE
  • NTE263 - Silicon Complementary Transistors
  • NTE2631 - Integrated Circuit Quad Differential Line Driver
  • NTE2632 - Integrated Circuit Quad Differential Line Receiver
  • NTE2633 - Silicon Complementary Transistors
  • NTE2634 - Complementary Silicon Transistors
  • NTE2635 - Silicon NPN Transistor
  • NTE2637 - Silicon NPN Transistor
  • NTE2638 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

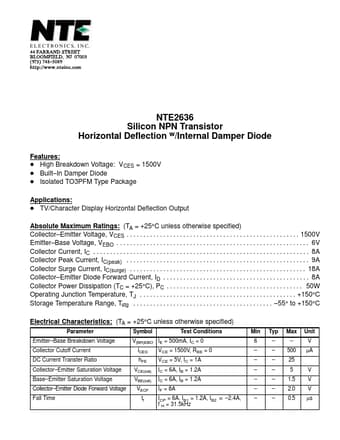

NTE2636 Silicon NPN Transistor Horizontal Deflection w/Internal Damper Diode Features: D High Breakdown Voltage: VCES = 1500V D Built–In Damper Diode D Isolated TO3PFM Type Package Applications: D TV/Character Display Horizontal Deflection Output Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Emitter Voltage, VCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A Collector Peak Current, IC(peak) . . . . . .
