NTE3083 - Optoisolator

Name: NTE3083
SKU: NTE3083-464212

NTE

The NTE3083 by NTE is a Optoisolator. Below is the official datasheet preview.

Datasheet Details

Part number	NTE3083
Manufacturer	NTE
File Size	25.12 KB
Description	Optoisolator
Datasheet	NTE3083_NTEElectronics.pdf

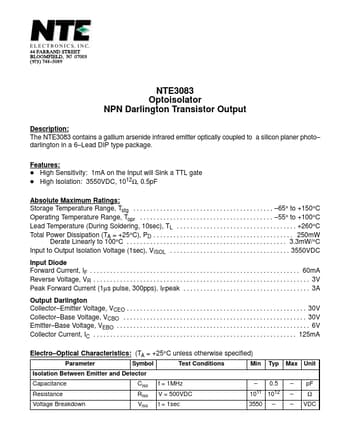

Additional preview pages of the NTE3083 datasheet.

The NTE3083 contains a gallium arsenide infrared emitter optically coupled to a silicon planer photo darlington in a 6 Lead DIP type package.

D High Sensitivity: 1mA on the Input will Sink a TTL gate D High Isolation: 3550VDC, 1012Ω, 0.5pF Absolute Maximum Ratings: Storage Temperature Range, Tstg.
.
65° to +150°C Operating Temperature Range, Topr.
55° to +100°C Lead Temperature (During Soldering, 10sec), TL.
. +26.
