NTE3086 Optoisolator

NTE3086 Description

NTE3086 Optoisolator Dual NPN Transistor Output .
The NTE3086 is a standard dual optocoupler consisting of a GaAs Infrared LED and a silicon phototransistor per channel.

NTE3086 Features

* D Two isolated Channels per Package D 7500V Withstand Test Voltage D CTR Minimum: 20% Absolute Maximum Ratings: Gallium Arsenide LED (Each Channel) Power Dissipation (TA = +25°C), PD
* . . 100mW Derate Above 25°C

📥 Download Datasheet

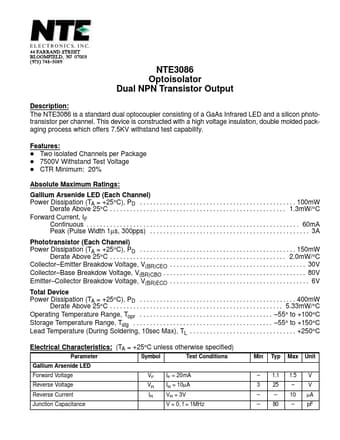

Preview of NTE3086 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTE3086
Manufacturer
NTE
File Size
23.61 KB
Datasheet
NTE3086_NTEElectronics.pdf
Description
Optoisolator
