NTE31 - Silicon Complementary Transistors

NTE31 Description

NTE31 (NPN) & NTE32 (PNP) Silicon Complementary Transistors TV Sound Output, TV Vertical Output, AF Driver Output .

NTE31 Applications

* D Vertical Deflection Output & Sound Output Applications for Line Operated TV Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector
* Base Voltage, VCBO
* . . . . 160V Collector

📥 Download Datasheet

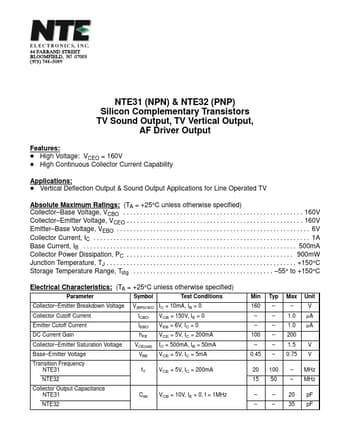

Preview of NTE31 PDF
datasheet Preview Page 2

Datasheet Details

Part number
NTE31
Manufacturer
NTE
File Size
20.32 KB
Datasheet
NTE31_NTEElectronics.pdf
Description
Silicon Complementary Transistors
