NTE50 - Silicon Complementary Transistors

This page provides the datasheet information for the NTE50, a member of the NTE49 Silicon Complementary Transistors family.

Datasheet Summary

Description

The NTE49 (NPN) and NTE50 (PNP) are silicon complementary transistors in a TO202 type case designed for general purpose, high voltage amplifier and driver applications.

Features

  • D High Collector Breakdown Voltage: V(BR)CEO = 100V Min @ IC = 1mA D High Power Dissipation: PD = 10W @ TC = +25°C Absolute Maximum Ratings: Collector.
  • Emitter Voltage, VCEO.
  • . . . 100V Collector.
  • Base Voltage, VCB.
  • . 120V Emitter.
  • Base Voltage, VEB.

📥 Download Datasheet

Datasheet preview – NTE50

Datasheet Details

Part number NTE50
Manufacturer NTE
File Size 27.24 KB
Description Silicon Complementary Transistors
Datasheet download datasheet NTE50 Datasheet
Additional preview pages of the NTE50 datasheet.

📁 Similar Datasheet

  • NTE53006 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53010 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53016 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53020 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE5390 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5391 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5392 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5393 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5394 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5550 - (NTE5550 - NTE5558) Silicon Controlled Rectifiers (NTE Electronics)
Other Datasheets by NTE
  • NTE5000A - Zener Diode
  • NTE5001A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
  • NTE5002A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
  • NTE5003A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
  • NTE5004A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
  • NTE5005A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
  • NTE5005SM - Zener Diode
  • NTE5006A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance

Full PDF Text Transcription

Click to expand full text

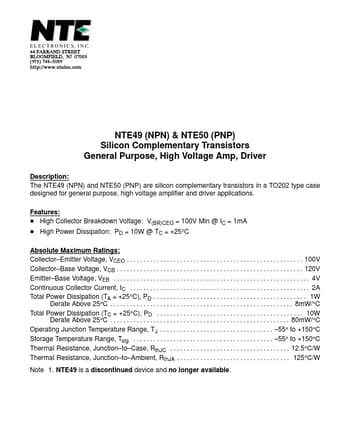

NTE49 (NPN) & NTE50 (PNP) Silicon Complementary Transistors General Purpose, High Voltage Amp, Driver Description: The NTE49 (NPN) and NTE50 (PNP) are silicon complementary transistors in a TO202 type case designed for general purpose, high voltage amplifier and driver applications. Features: D High Collector Breakdown Voltage: V(BR)CEO = 100V Min @ IC = 1mA D High Power Dissipation: PD = 10W @ TC = +25°C Absolute Maximum Ratings: Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V Collector–Base Voltage, VCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120V Emitter–Base Voltage, VEB . . . . . . . . . . . . . . . . . . . . . . . . . .
