NTE53 - Silicon NPN Transistor

Datasheet Summary

Description

The NTE52 is a silicon NPN transistor in a TO3 type package designed for high voltage, high

speed power switching in inductive circuits where fall time is critical.

operated switch

mode appliations.

📥 Download Datasheet

Datasheet preview – NTE53

Datasheet Details

Part number NTE53
Manufacturer NTE
File Size 26.62 KB
Description Silicon NPN Transistor
Datasheet download datasheet NTE53 Datasheet
Additional preview pages of the NTE53 datasheet.

📁 Similar Datasheet

  • NTE53006 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53010 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53016 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53020 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE5390 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5391 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5392 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5393 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5394 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5550 - (NTE5550 - NTE5558) Silicon Controlled Rectifiers (NTE Electronics)
Other Datasheets by NTE
  • NTE5304 - Silicon Bridge Rectifier
  • NTE5307 - Silicon Bridge Rectifier
  • NTE5309 - Single Phase Bridge Rectifier
  • NTE5311 - Single Phase Bridge Rectifier
  • NTE5312 - Single Phase Bridge Rectifier
  • NTE5313 - Single Phase Bridge Rectifier 8 Amp
  • NTE5314 - Single Phase Bridge Rectifier 8 Amp
  • NTE5315 - Single Phase Bridge Rectifier 8 Amp

Full PDF Text Transcription

Click to expand full text

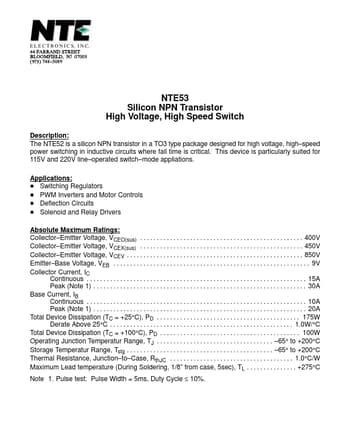

NTE53 Silicon NPN Transistor High Voltage, High Speed Switch Description: The NTE52 is a silicon NPN transistor in a TO3 type package designed for high voltage, high–speed power switching in inductive circuits where fall time is critical. This device is particularly suited for 115V and 220V line–operated switch–mode appliations. Applications: D Switching Regulators D PWM Inverters and Motor Controls D Deflection Circuits D Solenoid and Relay Drivers Absolute Maximum Ratings: Collector–Emitter Voltage, VCEO(sus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V Collector–Emitter Voltage, VCEX(sus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450V Collector–Emitter Voltage, VCEV . . . .
