NTE5304 - Silicon Bridge Rectifier

Datasheet Summary

Features

  • D High Reverse Voltage to 1000V D Surge Overload Ratings to 50A (Peak) D Good for PC Board Assembly Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified. Single Phase, Half Wave, 60Hz, Resistive or Inductive Load, Note 1.) Maximum Recurrent Peak Reverse Voltage, VRRM NTE5304.
  • . . 400V NTE5305.

📥 Download Datasheet

Datasheet preview – NTE5304

Datasheet Details

Part number NTE5304
Manufacturer NTE
File Size 17.33 KB
Description Silicon Bridge Rectifier
Datasheet download datasheet NTE5304 Datasheet
Additional preview pages of the NTE5304 datasheet.

📁 Similar Datasheet

  • NTE53006 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53010 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53016 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53020 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE5390 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5391 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5392 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5393 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5394 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5550 - (NTE5550 - NTE5558) Silicon Controlled Rectifiers (NTE Electronics)
Other Datasheets by NTE
  • NTE5307 - Silicon Bridge Rectifier
  • NTE5309 - Single Phase Bridge Rectifier
  • NTE53 - Silicon NPN Transistor
  • NTE5311 - Single Phase Bridge Rectifier
  • NTE5312 - Single Phase Bridge Rectifier
  • NTE5313 - Single Phase Bridge Rectifier 8 Amp
  • NTE5314 - Single Phase Bridge Rectifier 8 Amp
  • NTE5315 - Single Phase Bridge Rectifier 8 Amp

Full PDF Text Transcription

Click to expand full text

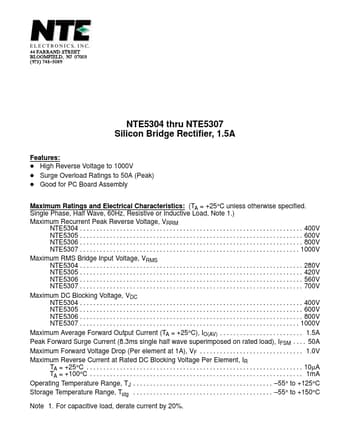

NTE5304 thru NTE5307 Silicon Bridge Rectifier, 1.5A Features: D High Reverse Voltage to 1000V D Surge Overload Ratings to 50A (Peak) D Good for PC Board Assembly Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified. Single Phase, Half Wave, 60Hz, Resistive or Inductive Load, Note 1.) Maximum Recurrent Peak Reverse Voltage, VRRM NTE5304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V NTE5305 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE5306 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
