NTE74C923, NTE74C922 - CMOS Key Encoders

NTE

NTE74C923 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTE74C923, NTE74C922. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NTE74C923, NTE74C922
Manufacturer	NTE
File Size	82.84 KB
Description	CMOS Key Encoders
Datasheet	NTE74C922_NTEElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: NTE74C923, NTE74C922. Please refer to the document for exact specifications by model.

NTE74C923 Product details

Description

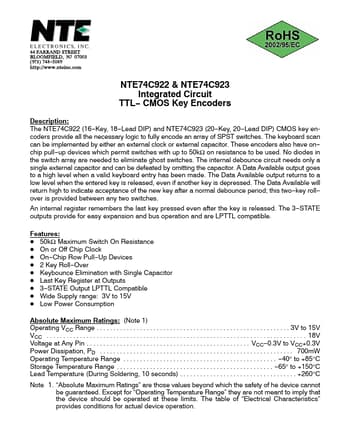

The NTE74C922 (16 Key, 18 Lead DIP) and NTE74C923 (20 Key, 20 Lead DIP) CMOS key encoders provide all the necessary logic to fully encode an array of SPST switches. chip pull up devices which permit switches with up to 50kΩ on resistance to be used.

Features

D 50kΩ Maximum Switch On Resistance D On or Off Chip Clock D On.
Chip Row Pull.
Up Devices D 2 Key Roll.
Over D Keybounce Elimination with Single Capacitor D Last Key Register at Outputs D 3.
STATE Output LPTTL Compatible D Wide Supply range: 3V to 15V D Low Power Consumption Absolute Maximum Ratings: (Note 1) Operating VCC Range.
. . . 3V to 15V VCC.
