CGY1043, 1 GHz - 23 dB gain GaAs push-pull amplifier

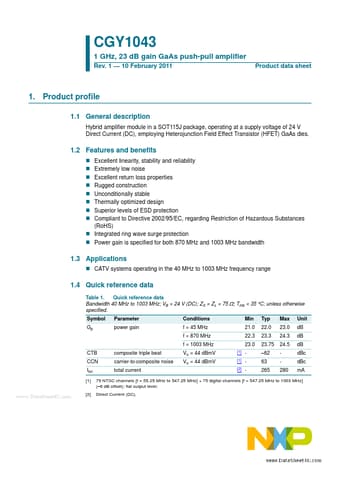

CGY1043 1 GHz, 23 dB gain GaAs push-pull amplifier Rev.1 * 10 February 2011 Product data sheet 1.Product profile 1.1 General .
Hybrid amplifier module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Heterojunction Field Effect Transis.

datasheet Preview Page 1 from Datasheet4u.com

CGY1043_NXPSemiconductors.pdf

CGY1043 Datasheet Preview — Preview of CGY1043 PDF

Datasheet Details

Part number:

CGY1043

Manufacturer:

NXP ↗ Semiconductors

File Size:

120.12 KB

Description:

1 GHz - 23 dB gain GaAs push-pull amplifier

Features

* Excellent linearity, stability and reliability Extremely low noise Excellent return loss properties Rugged construction Unconditionally stable Thermally optimized design Superior levels of ESD protection Compliant to Dir

Applications

* CATV systems operating in the 40 MHz to 1003 MHz frequency range 1.4 Quick reference data Table 1. Quick reference data Bandwidth 40 MHz to 1003 MHz; VB = 24 V (DC); ZS = ZL = 75 Ω; Tmb = 35 °C; unless otherwise specified. Symbol Gp Parameter power gain Conditions f = 45 MHz f = 870 MHz f
