PH4330L N-Channel MOSFET

PH4330L Description

PH4330L N-channel TrenchMOS logic level FET Rev.01 * 22 October 2008 Product data sheet 1.Product profile 1.1 General .
Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology.

PH4330L Features

* 100 % gate resistance tested
* 100 % ruggedness tested
* Lead-free package
* Logic level threshold
* Optimized for use in DC-DC converters

PH4330L Applications

* DC-to-DC convertors
* PC motherboards
* Switched-mode power supplies
* Voltage regulators 1.4 Quick reference data Table 1. VDS ID www. DataSheet4U. com Quick reference Conditions Tmb = 25 °C; VGS = 10 V; see Figure 1; see Figure 3 VGS = 4.5 V; ID = 25 A; VDS = 12 V

📥 Download Datasheet

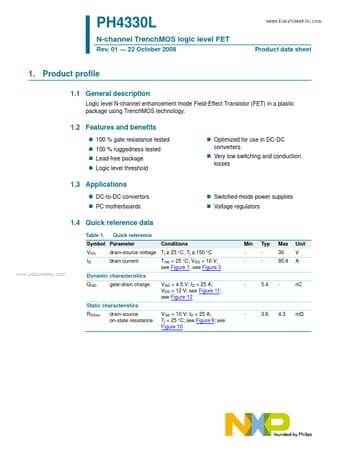

Preview of PH4330L PDF
datasheet Preview Page 2 datasheet Preview Page 3
