PH4025L, N-Channel MOSFET

PH4025L N-channel TrenchMOS logic level FET Rev.01 * 22 August 2007 Product data sheet 1.Product proﬁle 1.1 General .
Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology.

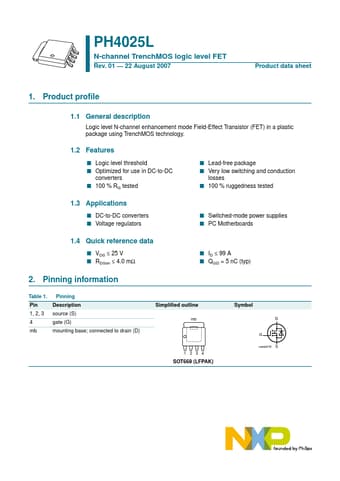

datasheet Preview Page 1 from Datasheet4u.com

PH4025L-NXP.pdf

PH4025L Datasheet Preview — Preview of PH4025L PDF

Datasheet Details

Part number:

PH4025L

Manufacturer:

NXP ↗

File Size:

74.78 KB

Description:

N-Channel MOSFET

Applications

* I DC-to-DC converters I Voltage regulators I Lead-free package I Very low switching and conduction losses I 100 % ruggedness tested I Switched-mode power supplies I PC Motherboards 1.4 Quick reference data I VDS ≤ 25 V I RDSon ≤ 4.0 mΩ I ID ≤ 99 A I QGD = 5 nC (typ) 2. Pinning information Table
