PHP222NQ04LT, N-channel TrenchMOSTM logic level FET

www.DataSheet4U.com PHP/PHB222NQ04LT N-channel TrenchMOS™ logic level FET Rev.01 * 13 May 2004 Product data 1.Product proﬁle 1.1 Descripti.
Logic level N-channel enhancement mode ﬁeld-effect transistor in a plastic package using TrenchMOS™ technology.

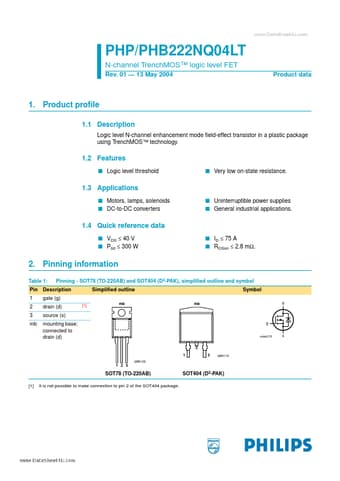

datasheet Preview Page 1 from Datasheet4u.com

PHP222NQ04LT_NXPSemiconductors.pdf

PHP222NQ04LT Datasheet Preview — Preview of PHP222NQ04LT PDF

Datasheet Details

Part number:

PHP222NQ04LT

Manufacturer:

NXP ↗ Semiconductors

File Size:

121.10 KB

Description:

N-channel TrenchMOSTM logic level FET

Applications

* s Motors, lamps, solenoids s DC-to-DC converters s Uninterruptible power supplies s General industrial applications. 1.4 Quick reference data s VDS ≤ 40 V s Ptot ≤ 300 W s ID ≤ 75 A s RDSon ≤ 2.8 mΩ. 2. Pinning information Table 1: 1 2 3 mb Pinning - SOT78 (TO-220AB) and SOT404 (D2-PAK), simpliﬁed
