PHP206 - Dual P-channel enhancement mode MOS transistor

Datasheet Summary

Description

Two P-channel enhancement mode MOS transistors in an 8-pin plastic SOT96-1 (SO8) package.

CAUTION The device is supplied in an antistatic package.

The gate-source input must be protected against static discharge during transport or handling.

Features

  • High-speed switching.
  • No secondary breakdown.
  • Very low on-state resistance.

📥 Download Datasheet

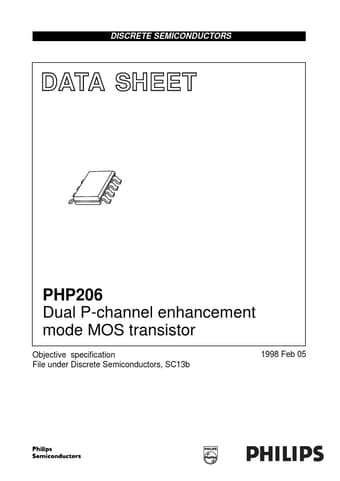

Datasheet preview – PHP206
