PHP225 - Dual P-Channel 30V MOSFET

Datasheet Summary

Features

  • Halogen-free.
  • Trench Power MOSFET.
  • 100 % UIS Tested.

📥 Download Datasheet

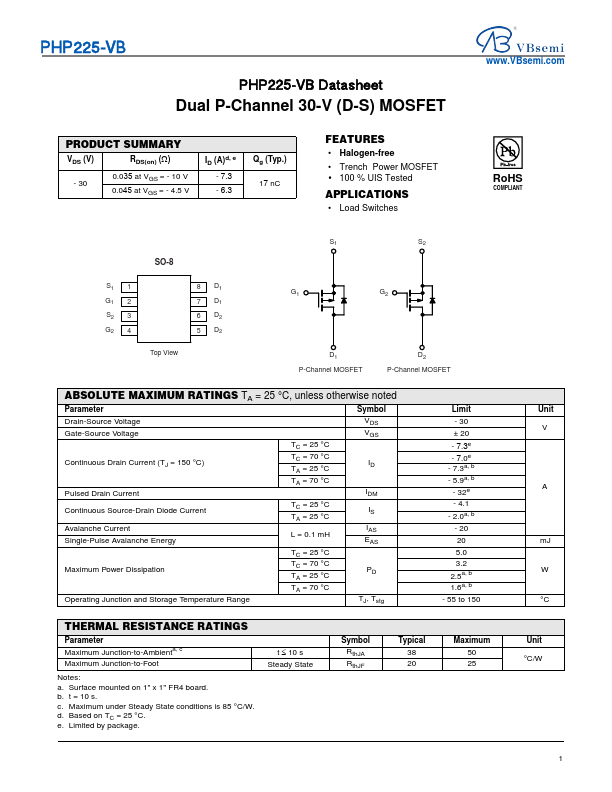

Datasheet preview – PHP225

Datasheet Details

Part number PHP225
Manufacturer VBsemi
File Size 283.37 KB
Description Dual P-Channel 30V MOSFET
Datasheet download datasheet PHP225 Datasheet

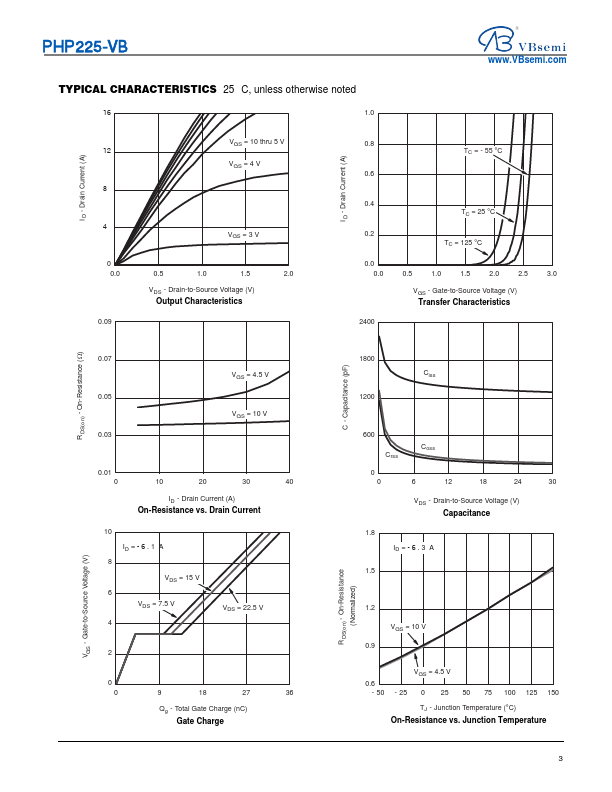

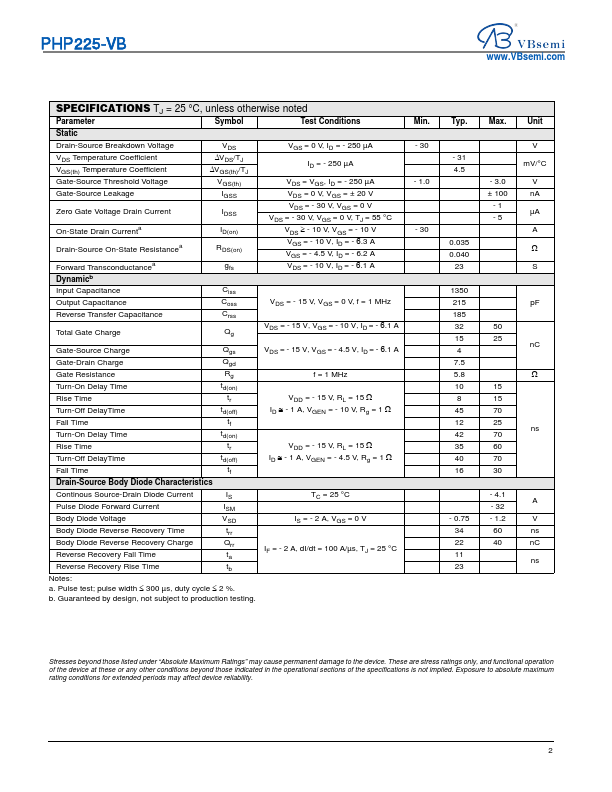

Additional preview pages of the PHP225 datasheet.

📁 Similar Datasheet

  • PHP225 - Dual P-channel intermediate level FET (NXP)
  • PHP225NQ04T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP222 - Dual P-channel enhancement mode MOS transistor (NXP)
  • PHP222NQ04LT - N-channel TrenchMOSTM logic level FET (NXP Semiconductors)
  • PHP206 - Dual P-channel enhancement mode MOS transistor (NXP)
  • PHP208 - 7/500 & 15/000 Watt TVS Module (Semtech Corporation)
  • PHP20N06 - N-channel TrenchMOS transistor (NXP)
  • PHP20N06 - PowerMOS transistor (NXP)
  • PHP20N06E - PowerMOS transistor (NXP)
  • PHP20N06T - N-channel TrenchMOS transistor (NXP)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
PHP225-VB PHP225-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.035 at VGS = - 10 V 0.045 at VGS = - 4.5 V ID (A)d, e - 7.3 - 6.3 Qg (Typ.) 17 nC FEATURES • Halogen-free • Trench Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switches www.VBsemi.
