PHP225NQ04T - N-channel TrenchMOS standard level FET

PHP225NQ04T Description

www.DataSheet4U.com PHP/PHB225NQ04T N-channel TrenchMOS™ standard level FET Rev.01 * 12 May 2004 Product data 1.Product profile 1.1 Descrip.
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™ technology.

PHP225NQ04T Applications

* s Motors, lamps, solenoids s DC-to-DC converters s Uninterruptible power supplies s General industrial applications. 1.4 Quick reference data s VDS ≤ 40 V s Ptot ≤ 300 W s ID ≤ 75 A s RDSon ≤ 3.1 mΩ. 2. Pinning information Table 1: 1 2 3 mb Pinning - SOT78 (TO-220AB) and SOT404 (D2-PAK), simplified

📥 Download Datasheet

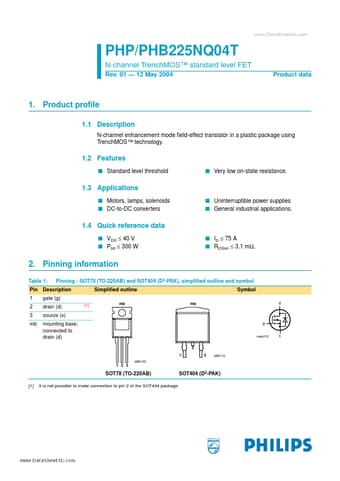

Preview of PHP225NQ04T PDF
