PTN3342 - High speed differential line receiver

Description

The PTN3342 is a differential line receiver that implements the electrical characteristics of Low-Voltage Differential Signaling (LVDS).

This device meets or exceeds the requirements of the ANSI TIA/EIA-644 Standard.

LVDS is used to achieve higher data rates on commonly used media.

Features

  • s s s s s s s s s Meets or exceeds the requirements of ANSI TIA/EIA-644 Standard Designed for signaling rates of up to 400 Mbps Differential input thresholds of ±100 mV Power dissipation of 60 mW typical at 200 MHz Typical propagation delay of 2.6 ns Low Voltage TTL (LVTTL) logic output levels Pin compatible with AM26LS32 and SN65LVDS32 Open-circuit fail safe Termination resistors on chip. 3.

📥 Download Datasheet

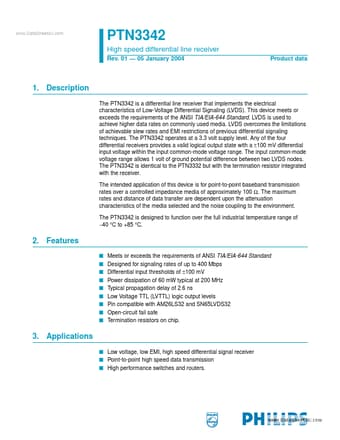

Datasheet preview – PTN3342

Datasheet Details

Part number PTN3342
Manufacturer NXP Semiconductors
File Size 133.37 KB
Description High speed differential line receiver
Datasheet download datasheet PTN3342 Datasheet
Additional preview pages of the PTN3342 datasheet.
