UBA2015A - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver

This page provides the datasheet information for the UBA2015A, a member of the UBA2015 (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver family.

Datasheet Summary

Description

The UBA2016A/15/15A are high voltage Integrated Circuits (IC) intended to drive fluorescent lamps with filaments such as Tube Lamps (TL) and Compact Fluorescent Lamps (CFL) in general lighting applications.

Features

  • Power factor correction features:.
  • Integrated 4-pin critical conduction mode PFC controller/driver.
  • Open and short pin-short protection on PFC feedback pin.
  • Overcurrent protection.
  • Overvoltage protection.
  • Half-bridge driver features:.
  • Integrated level-shifter for the high-side driver of the half-bridge.
  • Integrated bootstrap diode for the high-side driver supply of the half-bridge.
  • Independent non-overlap time.
  • Fluorescent lamp controller feature.

📥 Download Datasheet

Datasheet preview – UBA2015A

Datasheet Details

Part number UBA2015A
Manufacturer NXP Semiconductors
File Size 895.47 KB
Description (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver
Datasheet download datasheet UBA2015A Datasheet
Additional preview pages of the UBA2015A datasheet.

📁 Similar Datasheet

  • UBA2013 - HB driver IC (Philips)
  • UBA2013L - HB driver IC (Philips)
  • UBA2013T - HB driver IC (Philips)
  • UBA2014 - 600V driver IC (NXP)
  • UBA2017 - 600V fluorescent lamp driver (NXP)
  • UBA2017A - 600V fluorescent lamp driver (NXP)
  • UBA2000T - Electronic TL-lamp starter (NXP)
  • UBA2021 - 630 V driver IC for CFL and TL lamps (NXP)
  • UBA2021 - 630V driver IC (Philips)
  • UBA2024 - Half-bridge power IC (NXP)
Other Datasheets by NXP Semiconductors
  • UBA2015 - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver
  • UBA2016A - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver
  • UBA2025 - CFL power IC
  • UBA20271 - (UBA20271 / UBA20272) 350 V and 600 V Power ICs
  • UBA20272 - (UBA20271 / UBA20272) 350 V and 600 V Power ICs
  • UBA2028 - 600V dimmable power IC
  • UBA2071 - Half bridge controller
  • UBA2071A - Half bridge controller

Full PDF Text Transcription

Click to expand full text

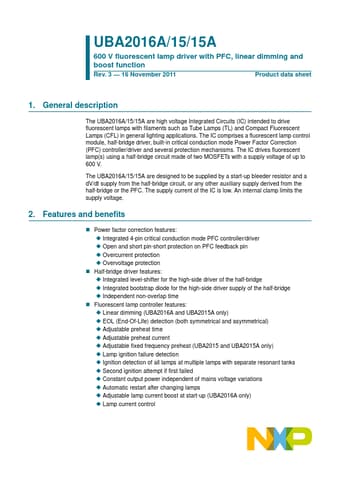

www.DataSheet.co.kr UBA2016A/15/15A 600 V fluorescent lamp driver with PFC, linear dimming and boost function Rev. 3 — 16 November 2011 Product data sheet 1. General description The UBA2016A/15/15A are high voltage Integrated Circuits (IC) intended to drive fluorescent lamps with filaments such as Tube Lamps (TL) and Compact Fluorescent Lamps (CFL) in general lighting applications. The IC comprises a fluorescent lamp control module, half-bridge driver, built-in critical conduction mode Power Factor Correction (PFC) controller/driver and several protection mechanisms. The IC drives fluorescent lamp(s) using a half-bridge circuit made of two MOSFETs with a supply voltage of up to 600 V.
Published: |
