2PC4617 - NPN general purpose transistor

Datasheet Summary

Description

DESCRIPTION NPN transistor in an SC-75 plastic package.

PNP complement: 2PA1774.

MARKING TYPE NUMBER 2PC4617Q 2PC4617R 2PC4617S MARKING CODE ZQ ZR ZS Fig.1 Simplified outline (SC-75) and symbol.

Features

  • Low current (max. 100 mA).
  • Low voltage (max. 50 V).

📥 Download Datasheet

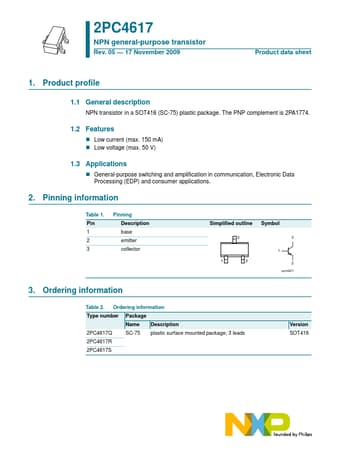

Datasheet preview – 2PC4617

Datasheet Details

Part number 2PC4617
Manufacturer NXP
File Size 69.84 KB
Description NPN general purpose transistor
Datasheet download datasheet 2PC4617 Datasheet
