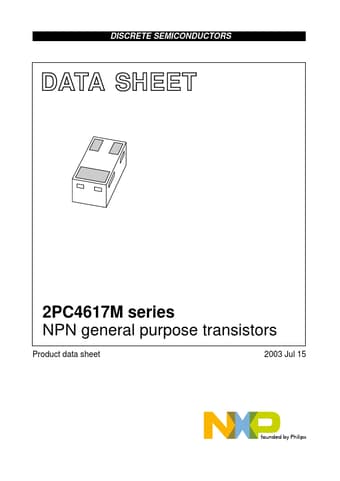

2PC4617M Datasheet - NXP

2PC4617M NPN general purpose transistors

DESCRIPTION NPN general purpose transistor in a SOT883 leadless ultra small plastic package. PNP complement: 2PA1776M series. MARKING TYPE NUMBER 2PC4617QM 2PC4617RM 2PC4617SM MARKING CODE D7 D8 D9 handbook, ha2lfpage 1 Bottom view 31 MAM475 3 2 Fig.1 Simplified outline (SOT883) and symbol. .

2PC4617M Features

* Leadless ultra small plastic package (1 mm × 0.6 mm × 0.5 mm)

* Board space 1.3 × 0.9 mm

* Power dissipation comparable to SOT23. QUICK REFERENCE DATA SYMBOL PARAMETER VCEO IC ICM collector-emitter voltage collector current (DC) peak collector current MAX. UNIT 50 V 1
