2PC4081R-Q - NPN general-purpose transistor

Datasheet Summary

Description

NPN transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Low current (max. 150 mA).
  • Low voltage (max. 50 V).
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

Datasheet preview – 2PC4081R-Q

Datasheet Details

Part number 2PC4081R-Q
Manufacturer nexperia
File Size 186.89 KB
Description NPN general-purpose transistor
Datasheet download datasheet 2PC4081R-Q Datasheet

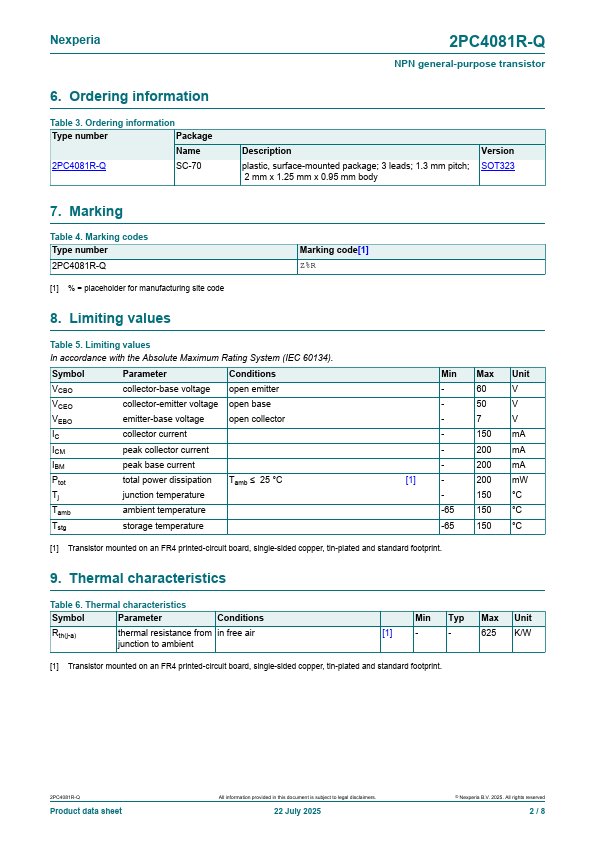

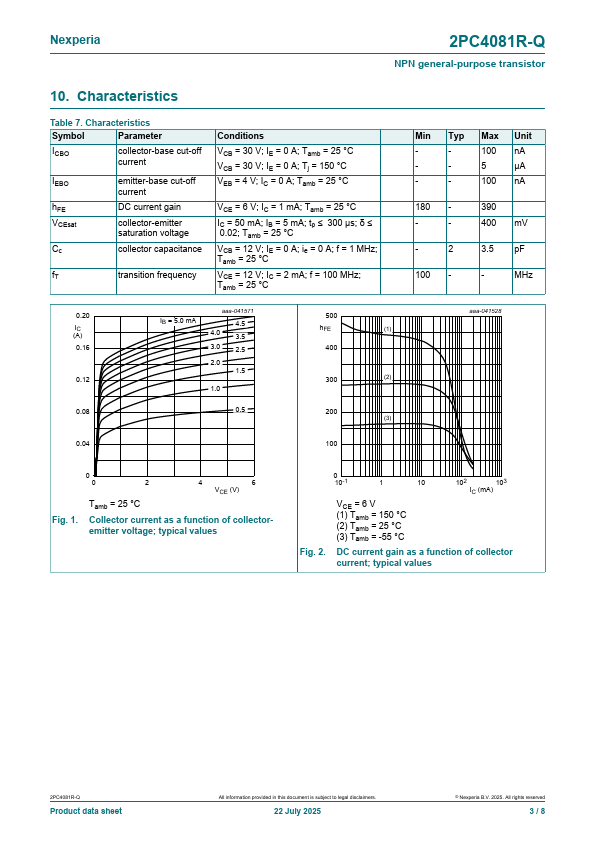

Additional preview pages of the 2PC4081R-Q datasheet.

📁 Similar Datasheet

  • 2PC4081 - NPN general purpose transistor (NXP)
  • 2PC4617 - NPN general purpose transistor (NXP)
  • 2PC4617M - NPN general purpose transistors (NXP)
  • 2PC4617QM - NPN general purpose transistors (NXP)
  • 2PC4617RM - NPN general purpose transistors (NXP)
  • 2PC4617SM - NPN general purpose transistors (NXP)
  • 2PC1815 - NPN general purpose transistor (NXP)
  • 2PC945 - NPN general purpose transistor (NXP)
  • 2PCS02 - ICE2PCS02 (Infineon Technologies)
  • 2PCS06 - ICE2PCS06 (Infineon Technologies)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

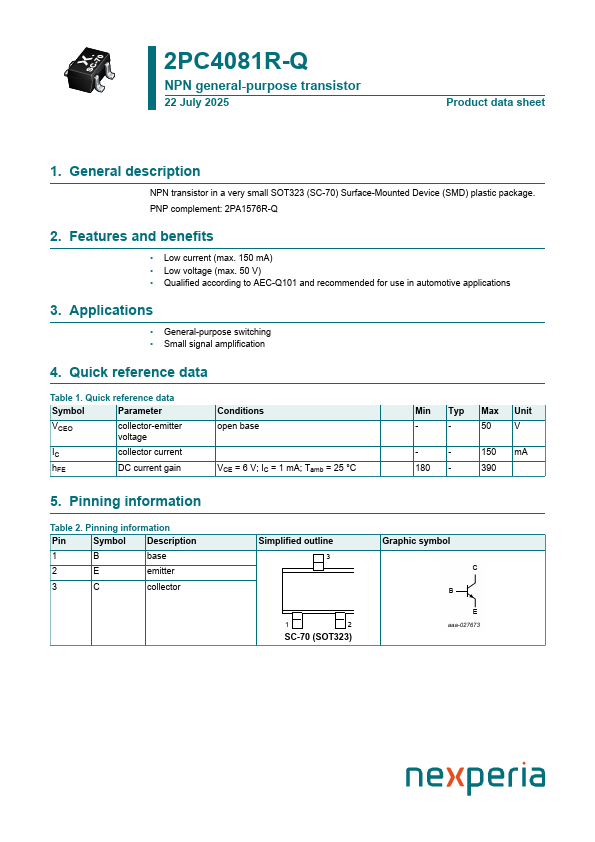

2PC4081R-Q NPN general-purpose transistor 22 July 2025 Product data sheet 1. General description NPN transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. PNP complement: 2PA1576R-Q 2. Features and benefits • Low current (max. 150 mA) • Low voltage (max. 50 V) • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • General-purpose switching • Small signal amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 6 V; IC = 1 mA; Tamb = 25 °C Min Typ Max Unit - - 50 V - - 180 - 150 mA 390 5. Pinning information Table 2.
