74ABT541 Datasheet - NXP

Octal buffer/line driver

74ABT541 Features

* Octal bus interface

* Functions similar to the ’ABT241

* Provides ideal interface and increases fan-out of MOS Microprocessors

* ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model

* Live insertion/extraction permitted DE

74ABT541 Datasheet (101.59 KB)

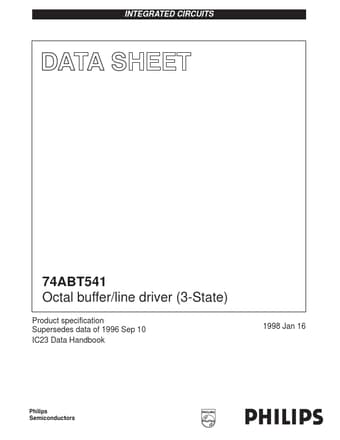

Preview of 74ABT541 PDF

Datasheet Details

Part number:

74ABT541

Manufacturer:

NXP ↗

File Size:

101.59 KB

Description:

Octal buffer/line driver.
INTEGRATED CIRCUITS 74ABT541 Octal buffer/line driver (3-State) Product specification Supersedes data of 1996 Sep 10 IC23 Data Handbook 1998 Jan 16 .
