74ABT543APW, 74ABT543A, Octal latched transceiver

74ABT543A Octal latched transceiver with dual enable; 3-state Rev.5 * 3 November 2011 Product data sheet 1.General .
The 74ABT543A high performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

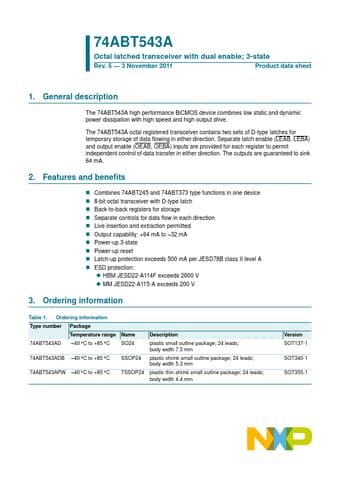

datasheet Preview Page 1 from Datasheet4u.com

74ABT543A_PhilipsSemiconductors.pdf

74ABT543APW Datasheet Preview — This datasheet PDF includes multiple part numbers: 74ABT543APW, 74ABT543A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74ABT543APW, 74ABT543A

Manufacturer:

NXP ↗

File Size:

127.57 KB

Description:

Octal latched transceiver

Note:

This datasheet PDF includes multiple part numbers: 74ABT543APW, 74ABT543A.
Please refer to the document for exact specifications by model.

Features

* Combines 74ABT245 and 74ABT373 type functions in one device
* 8-bit octal transceiver with D-type latch
* Back-to-back registers for storage
* Separate controls for data flow in each direction
* Live insertion and extraction permitted
* Output capability: +64 mA to 32 mA
