74ABT543AD

Octal latched transceiver

74ABT543AD Features

* Combines 74ABT245 and 74ABT373 type functions in one device

* 8-bit octal transceiver with D-type latch

* Back-to-back registers for storage

* Separate controls for data flow in each direction

* Live insertion and extraction permitted

* Output capability: +64 mA to 32 mA

74ABT543AD General Description

The 74ABT543A high performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. The 74ABT543A octal registered transceiver contains two sets of D-type latches for temporary storage of data flowing in either direction. Separate latch enable (LEAB.

74ABT543AD Datasheet (127.57 KB)

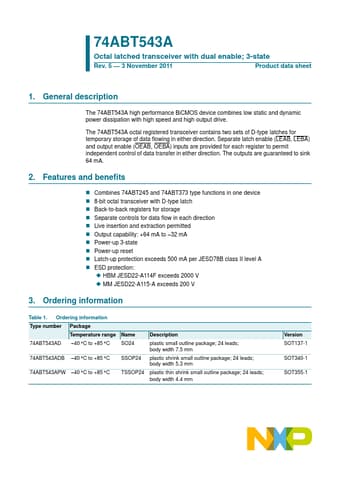

Preview of 74ABT543AD PDF
