74AHC1G00

2-input NAND gate

NXP

74AHC1G00 Features

* Symmetrical output impedance

* High noise immunity

* ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V

* Low power dissipation

* Balanced propagation delays

* Very small 5-pin package

* Output capability:

74AHC1G00 General Description

The 74AHC1G/AHCT1G00 is a high-speed Si-gate CMOS device. The 74AHC1G/AHCT1G00 provides the 2-input NAND function. FUNCTION TABLE See note 1. INPUTS inA L L H H Note 1. H = HIGH voltage level. L = LOW voltage level. ORDERING AND PACKAGE INFORMATION inB L H L H OUTPUT outY H H H L Notes 74AHC1G00; 7.

74AHC1G00 Datasheet (80.13 KB)

74AHC1G00 Datasheet Preview — Preview of 74AHC1G00 PDF

Datasheet Details

Part number:

74AHC1G00

Manufacturer:

NXP ↗

File Size:

80.13 KB

Description:

2-input nand gate.

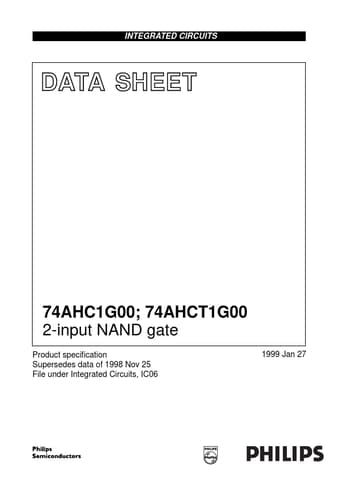

INTEGRATED CIRCUITS DATA SHEET 74AHC1G00; 74AHCT1G00 2-input NAND gate Product speciﬁcation Supersedes data of 1998 Nov 25 File under Integrated Cir.
