74AHC1G02-Q100 - 2-input NOR gate

Product Overview

nexperia

📥 Download Datasheet

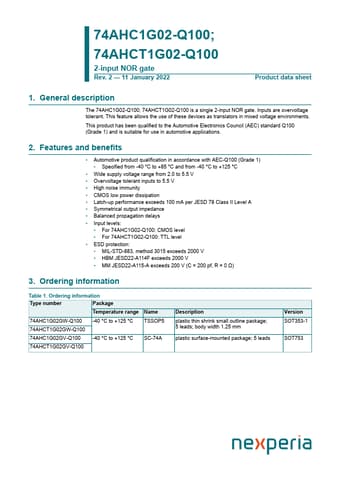

74AHC1G02-Q100 2-input NOR gate by nexperia - Datasheet Preview — Datasheet preview – 74AHC1G02-Q100

Datasheet Details

Part number	74AHC1G02-Q100
Manufacturer	nexperia
File Size	204.24 KB
Description	2-input NOR gate
Datasheet	74AHC1G02-Q100 Datasheet
Additional preview pages of the 74AHC1G02-Q100 datasheet.

Product details

Description

The 74AHC1G02-Q100; 74AHCT1G02-Q100 is a single 2-input NOR gate.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level A.
Symmetrical output impedance.
Balanced propagation delays.
Input levels:.
