74AHC1G00-Q100 - 2-input NAND gate

Product Overview

nexperia

📥 Download Datasheet

74AHC1G00-Q100 2-input NAND gate by nexperia - Datasheet Preview — Datasheet preview – 74AHC1G00-Q100

Datasheet Details

Part number	74AHC1G00-Q100
Manufacturer	nexperia
File Size	206.00 KB
Description	2-input NAND gate
Datasheet	74AHC1G00-Q100 Datasheet

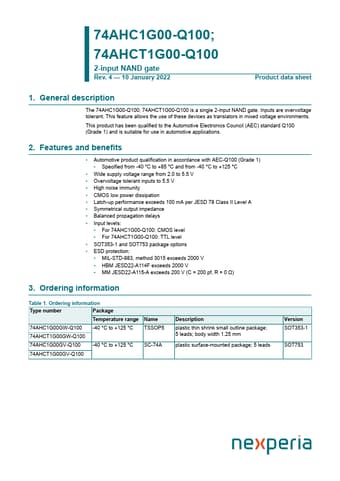

Additional preview pages of the 74AHC1G00-Q100 datasheet.

Product details

Description

The 74AHC1G00-Q100; 74AHCT1G00-Q100 is a single 2-input NAND gate.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level A.
Symmetrical output impedance.
Balanced propagation delays.
Input levels:.
