74CBTLV3125

4-bit bus switch

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74CBTLV3125PW-Q10J IC BUS SWITCH 1 X 1:1 14-TSSOP DigiKey 1635 1000 units
$0.31

74CBTLV3125 Datasheet (158.66 KB)

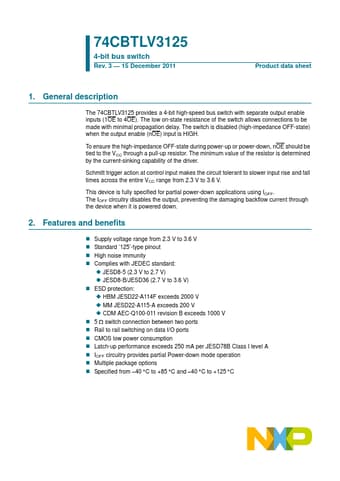

Preview of 74CBTLV3125 PDF Datasheet

Datasheet Details

Part number:

74CBTLV3125

Manufacturer:

NXP ↗

File Size:

158.66 KB

Description:

4-bit bus switch

74CBTLV3125 Features

* Supply voltage range from 2.3 V to 3.6 V

* Standard ’125’-type pinout

* High noise immunity

* Complies with JEDEC standard:

* JESD8-5 (2.3 V to 2.7 V)

* JESD8-B/JESD36 (2.7 V to 3.6 V)

* ESD protection:

* HBM JESD22-A114F exceeds 2000 V

* MM JESD22-A115-A exceed

74CBTLV3125 General Description

The 74CBTLV3125 provides a 4-bit high-speed bus switch with separate output enable inputs (1OE to 4OE). The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The switch is disabled (high-impedance OFF-state) when the output enable (nOE) input is HIGH.

📁 Related Datasheet

74CBTLV3125 - 4-bit bus switch (nexperia)
74CBTLV3125 4-bit bus switch Rev. 6 — 23 September 2020 Product data sheet 1. General description The 74CBTLV3125 provides a 4-bit high-speed bus sw.

74CBTLV3125-Q100 - 4-bit bus switch (nexperia)
74CBTLV3125-Q100 4-bit bus switch Rev. 4 — 23 September 2020 Product data sheet 1. General description The 74CBTLV3125-Q100 provides a 4-bit high-sp.

74CBTLV3126 - 4-bit Bus Switch (NXP)
74CBTLV3126 4-bit bus switch Rev. 01 — 5 January 2010 Product data sheet 1. General description The 74CBTLV3126 provides a 4-bit high-speed bus switc.

74CBTLV3126 - 4-bit bus switch (nexperia)
74CBTLV3126 4-bit bus switch Rev. 6 — 16 February 2023 Product data sheet 1. General description The 74CBTLV3126 provides a 4-bit high-speed bus swi.

74CBTLV3126-Q100 - 4-bit bus switch (nexperia)
74CBTLV3126-Q100 4-bit bus switch Rev. 4.1 — 16 February 2023 Product data sheet 1. General description The 74CBTLV3126-Q100 provides a 4-bit high-s.

74CBTLV3244 - LOW-VOLTAGE OCTAL BUS SWITCH (Renesas)
74CBTLV3244 LOW-VOLTAGE OCTAL BUS SWITCH LOW-VOLTAGE OCTAL BUS SWITCH INDUSTRIAL TEMPERATURE RANGE 74CBTLV3244 FEATURES: • Pin-out patible with .

TAGS

74CBTLV3125 4-bit bus switch NXP
