74CBTLV3125-Q100

4-bit bus switch

74CBTLV3125-Q100 Datasheet (274.44 KB)

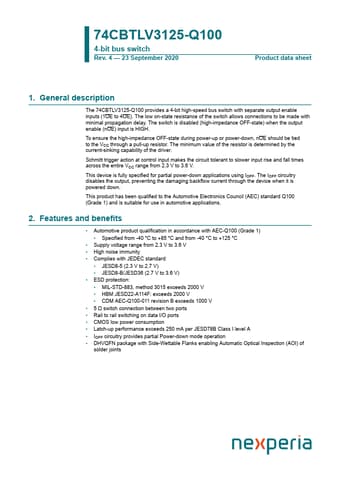

Preview of 74CBTLV3125-Q100 PDF Datasheet

Datasheet Details

Part number:

74CBTLV3125-Q100

Manufacturer:

nexperia ↗

File Size:

274.44 KB

Description:

4-bit bus switch

74CBTLV3125-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Supply voltage range from 2.3 V to 3.6 V

* High noise immunity

* Complies with JEDEC standard:

* JESD8-5 (2.3 V to 2

74CBTLV3125-Q100 General Description

The 74CBTLV3125-Q100 provides a 4-bit high-speed bus switch with separate output enable inputs (1OE to 4OE). The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The switch is disabled (high-impedance OFF-state) when the output enable (nOE) input is.
