74CBTLV3257

Quad 1-of-2 multiplexer/demultiplexer

74CBTLV3257 Features

* Supply voltage range from 2.3 V to 3.6 V

* High noise immunity

* Complies with JEDEC standard:

* JESD8-5 (2.3 V to 2.7 V)

* JESD8-B/JESD36 (2.7 V to 3.6 V)

* ESD protection:

* HBM JESD22-A114F exceeds 2000 V

* MM JESD22-A115-A exceeds 200 V

* CDM AEC-Q100-011 re

74CBTLV3257 General Description

The 74CBTLV3257 provides a quad 1-of-2 high-speed multiplexer/demultiplexer with common select (S) and output enable (OE) inputs. The low ON resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. When pin OE = .

74CBTLV3257 Datasheet (261.76 KB)

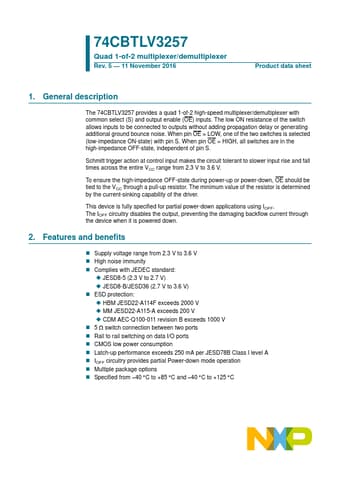

Preview of 74CBTLV3257 PDF

Datasheet Details

Part number:

74CBTLV3257

Manufacturer:

NXP ↗

File Size:

261.76 KB

Description:

Quad 1-of-2 multiplexer/demultiplexer.
