74F06A Datasheet, Drivers, NXP

74F06A Features

  • Drivers OF 74F06, 74F07
  • Open Collector output drive 64mA
  • High speed
  • 12V output termination voltage
  • Symmetrical propagation delays TYPE 74F06 74F06A 74F

PDF File Details

Part number:

74F06A

Manufacturer:

NXP ↗

File Size:

76.58kb

Download:

📄 Datasheet

Description:

Inverter/buffer drivers. 14-pin plastic Dual In-line Package 14-pin plastic Small Outline COMMERCIAL RANGE VCC = 5V ±10%, Tamb = 0°C to +70°C N74F06N, N74F06A

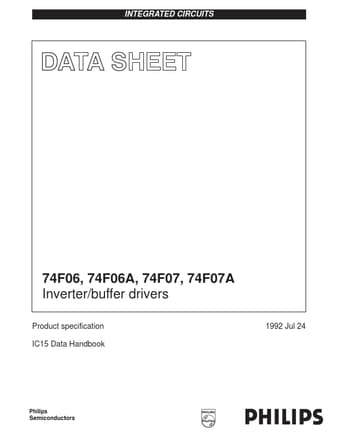

Datasheet Preview: 74F06A 📥 Download PDF (76.58kb)
