74F07A

Inverter/buffer drivers

74F07A Datasheet (76.58 KB)

Preview of 74F07A PDF

Datasheet Details

Part number:

74F07A

Manufacturer:

NXP ↗

File Size:

76.58 KB

Description:

Inverter/buffer drivers.

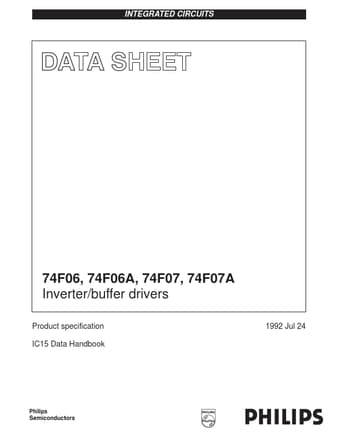

INTEGRATED CIRCUITS 74F06, 74F06A, 74F07, 74F07A Inverter/buffer drivers Product specification IC15 Data Handbook 1992 Jul 24 Philips Semiconductors.

74F07A Features

* OF 74F06, 74F07

* Open Collector output drive 64mA

* High speed

* 12V output termination voltage

* Symmetrical propagation delays TYPE 74F06 74F06A 74F07 74F07A TYPICAL PROPAGATION DELAY 3.5ns 9.0ns 4.5ns 10.0ns TYPICAL SUPPLY CURRENT (TOTAL) 30mA 30mA 32mA 32mA

74F07A General Description

14-pin plastic Dual In-line Package 14-pin plastic Small Outline COMMERCIAL RANGE VCC = 5V ±10%, Tamb = 0°C to +70°C N74F06N, N74F06AN N74F07D, N74F07AD PKG DWG # SOT27

*1 SOT108

*1 PIN CONFIGURATIONS 74F06/74F06A A0 Y0 A1 Y1 A2 Y2 GND 1 2 3 4 5 6 7 14 13 12 11 10 9 8 VCC A5 Y5 A4 Y4 .
