74F525 - Programmable Counter

74F525 Description

www.DataSheet4U.com 74F525 Programmable Counter August 1995 74F525 Programmable Counter General .
The ’F525 is a multi-function 28-pin device It consists of a 16-bit count-down counter logic to control the counter logic to control the state of the.

74F525 Features

* Y Y Y Y Y Y Y Baud rate generator Digitally programmed monostable Variable system frequency generator Digital filter variable sampling rate 16-bit data path External trigger Extremely accurate one shot w pulse widths from 50 ns to 3 27 ms CP e 40 MHz Commercial 74F525QC (Note 1) 74F525SC (Note 1)

📥 Download Datasheet

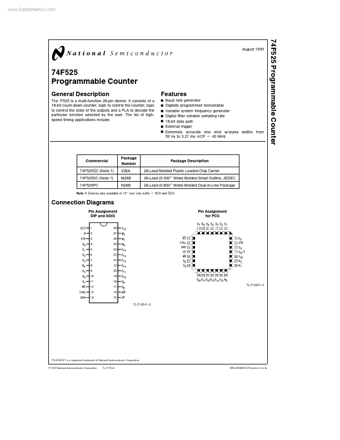

Preview of 74F525 PDF
