74HCT595, 74HC595, 8-bit serial-in serial or parallel-out shift register

74HC595; 74HCT595 8-bit serial-in, serial or parallel-out shift register with output latches; 3-state Rev.12 * 20 March 2024 Product data.
The 74HC595; 74HCT595 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs.

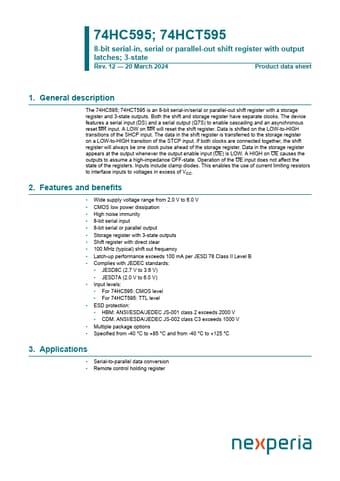

datasheet Preview Page 1 from Datasheet4u.com

74HC595-NXP.pdf

74HCT595 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HCT595, 74HC595. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74HCT595, 74HC595

Manufacturer:

NXP ↗

File Size:

323.46 KB

Description:

8-bit serial-in serial or parallel-out shift register

Note:

This datasheet PDF includes multiple part numbers: 74HCT595, 74HC595.
Please refer to the document for exact specifications by model.

Features

* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* 8-bit serial input
* 8-bit serial or parallel output
* Storage register with 3-state outputs
* Shift register with direct clear
* 100 M

Applications

* Serial-to-parallel data conversion
* Remote control holding register Nexperia 74HC595; 74HCT595 8-bit serial-in, serial or parallel-out shift register with output latches; 3-state 4. Ordering information Table 1. Ordering information Type number Package Temperature range 74HC
