74HCT573, 74HC573, Octal D-type transparent latch

74HC573; 74HCT573 Octal D-type transparent latch; 3-state Rev.7 * 4 March 2016 Product data sheet 1.General .
The 74HC573; 74HCT573 is an 8-bit D-type transparent latch with 3-state outputs.

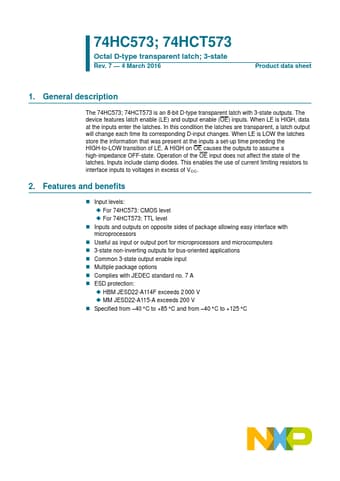

datasheet Preview Page 1 from Datasheet4u.com

74HC573-NXP.pdf

74HCT573 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HCT573, 74HC573. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74HCT573, 74HC573

Manufacturer:

NXP ↗

File Size:

178.25 KB

Description:

Octal D-type transparent latch

Note:

This datasheet PDF includes multiple part numbers: 74HCT573, 74HC573.
Please refer to the document for exact specifications by model.

Features

* Input levels:
* For 74HC573: CMOS level
* For 74HCT573: TTL level
* Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
* Useful as input or output port for microprocessors and microcomputers
* 3-state non-inverting outputs for bus-o

Applications

* Common 3-state output enable input
* Multiple package options
* Complies with JEDEC standard no. 7 A
* ESD protection:
* HBM JESD22-A114F exceeds 2 000 V
* MM JESD22-A115-A exceeds 200 V
* Specified from 40 C to +85 C and from 40 C to +125 C NXP Semiconductors 7
