74HCT540

Octal buffer/line driver

74HCT540 Features

* Inverting outputs

* Output capability: bus driver

* ICC category: MSI GENERAL DESCRIPTION The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. QUICK REFER

74HCT540 General Description

The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns 74HC/HCT540 The 74HC/HCT540 are octal inverting buffer/line drive.

74HCT540 Datasheet (51.94 KB)

Preview of 74HCT540 PDF

Datasheet Details

Part number:

74HCT540

Manufacturer:

Philips

File Size:

51.94 KB

Description:

Octal buffer/line driver.

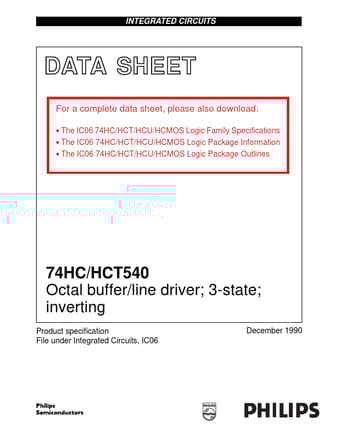

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download:

* The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
