74HCT533

Octal D-type transparent latch

74HCT533 Features

* 3-state inverting outputs for bus oriented applications

* Common 3-state output enable input

* Output capability: bus driver

* ICC category: MSI GENERAL DESCRIPTION The 74HC/HCT533 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TT

74HCT533 General Description

The 74HC/HCT533 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT533 are octal D-type transparent latches featuring separate D-type inputs for each latch and 3-state outputs for bu.

74HCT533 Datasheet (62.62 KB)

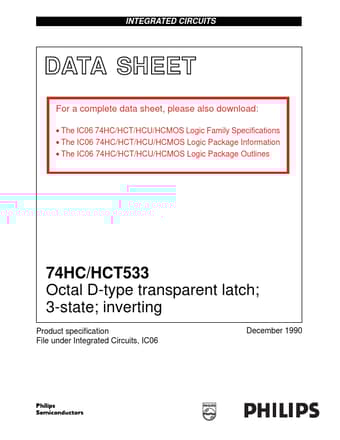

Preview of 74HCT533 PDF

Datasheet Details

Part number:

74HCT533

Manufacturer:

Philips

File Size:

62.62 KB

Description:

Octal d-type transparent latch.
INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download:

* The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
