74VHC541-Q100 - Octal buffer/line driver

74VHC541-Q100 Description

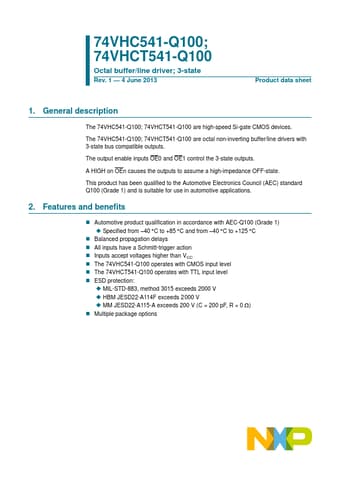

74VHC541-Q100; 74VHCT541-Q100 Octal buffer/line driver; 3-state Rev.1 * 4 June 2013 Product data sheet 1.General .
The 74VHC541-Q100; 74VHCT541-Q100 are high-speed Si-gate CMOS devices.

74VHC541-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from 40 C to +85 C and from 40 C to +125 C
* Balanced propagation delays
* All inputs have a Schmitt-trigger action
* Inputs accept voltages higher than VCC
* The 74VHC541-Q100 operates
