74VHC00

QUAD 2-INPUT NAND GATE

74VHC00 General Description

The 74VHC00 is an advanced high-speed CMOS QUAD 2-INPUT NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which provides high noise immunity and stable output. SOP TSSOP Table 1: .

74VHC00 Datasheet (155.60 KB)

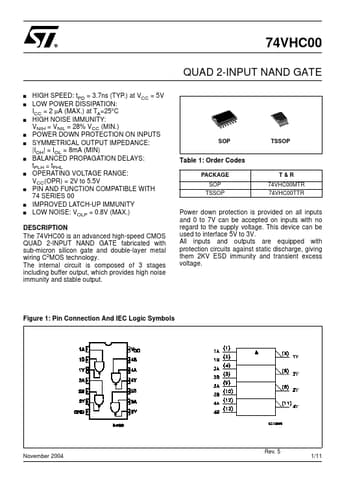

Preview of 74VHC00 PDF

Datasheet Details

Part number:

74VHC00

Manufacturer:

STMicroelectronics ↗

File Size:

155.60 KB

Description:

Quad 2-input nand gate.
74VHC00 QUAD 2-INPUT NAND GATE s HIGH SPEED: tPD = 3.7ns (TYP.) at VCC = 5V s LOW POWER DISSIPATION: ICC = 2 µA (MAX.) at TA=25°C s HIGH NOISE IMMUN.
