74VHC04 - HEX INVERTER

74VHC04 Description

74VHC04 HEX INVERTER s HIGH SPEED: tPD = 3.8ns (TYP.) at VCC = 5V s LOW POWER DISSIPATION: ICC = 2 µA (MAX.) at TA=25°C s HIGH NOISE IMMUNITY: VNIH .
The 74VHC04 is an advanced high-speed CMOS HEX INVERTER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

📥 Download Datasheet

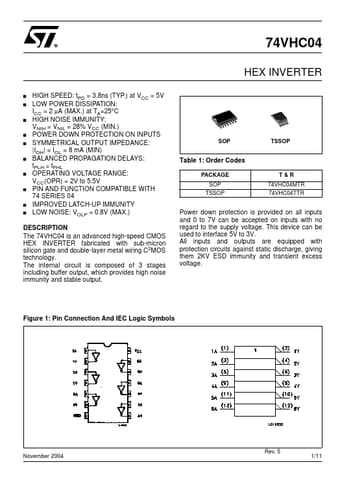

Preview of 74VHC04 PDF
